Caltrans 210 or 2010 Monitor ATSI Test

This article discusses setting up PCMT-8800 for a Caltrans 210 or 2010 monitor for the ATSI test.

Procedure

  1. Download and install PCMT-8800 Test Manager software.
  2. Open PCMT-8800 Test Manager.
  3. Go to “Test Setup”.
  4. Set Test Standard to “Caltrans Model 2010”.
  5. Set Monitor Type “16 Channel”.
  6. Go to “System/Timing and Voltage” tab and make sure that nothing is checked.

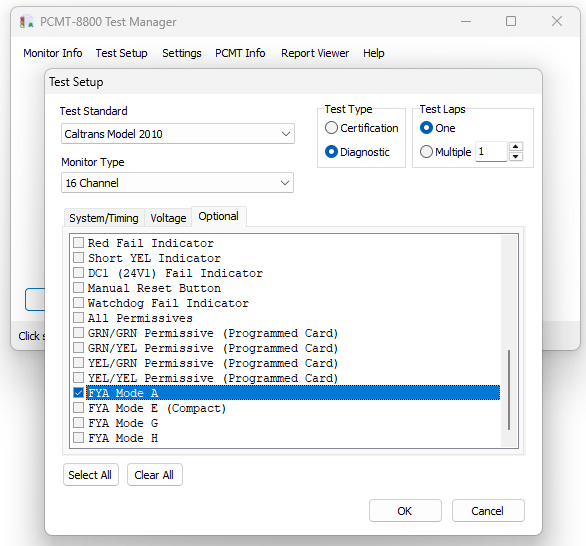

  7. Go to “Optional” tab and select "FYA Mode A" and click OK.
