How to prepare for 2010ECL OP test with flashing yellow arrow (FYA) test?

This article outlines the procedure for performing the FYA test.

Standard Test
  1. Enter 2010ECL monitor data into Monitor Info (serial number, etc.).
  2. Set dip switches (SSMs) on 2010ECL monitor.
    1. Top dip switch: 1,4,6,7 “on” (all others “off”)
    2. Middle dip switch: all “on”
    3. Bottom dip switch: all “on”
    4. WD Enable: “on”
  3. Insert “Regular Test Card” with all diodes soldered in.
  4. Start test.
    1. Make sure you reset monitor for five seconds after setting switches).
    2. Tester will “beep” when complete.
FYA (Compact) Test
  1. Remove 2010ECL monitor from tester unit.
  2. Reset dip switch to the following:
    1. Top dip switch: 1,4,6,7,8,9,10,11,12 “on” (all others “off”).
    2. Middle dip switch: 1,2,3,4,5,6,7,8 “on”.
    3. Bottom dip switch: 9,10,11,12,13,14,15,16 all “off”.
  3. Remove “Regular Test Card” and insert “FYA Test Card”(see below).

  5. Reinsert 2010ECL Monitor to the ATSI tester unit.
  6. Go to ATSI software, “Test Set” “Test Type” click “Diagnostic” .
  7. Go to Optional tab move down to “FYA Mode E” and check.
  8. Select “OK” to continue.
  9. Follow instruction on screen. Tester will “beep” when complete.

FYA (Compact Mode H) Test
  1. Remove 2010ECL monitor from tester unit.
  2. Reset dip switch to the following:
  3. Top dip switch: 1,4,5,6,7,8,9,10,11,12 “on” (all others “off”).
  4. Middle dip switch: 1,2,3,4,5,6,7,8 “on”.
  5. Bottom dip switch: 9,10,11,12,13,14,15,16 all “off”.
  6. Remove “Regular Test Card” and insert “FYA Test Card” (see below Fig.1 FYA mode H).
  7. Reinsert 2010ECL Monitor to the ATSI tester unit.
  8. Go to ATSI software, “Test Set” “Test Type” click “Diagnostic”.
  9. Go to Optional tab move down to “FYA Mode H” and check.
  10. Select “OK” to continue.
  11. Follow instructions on screen. Tester will “beep” when complete.

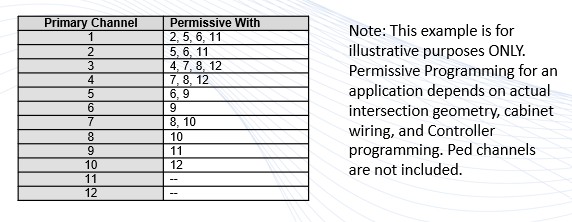

Figure 1 FYA mode H PGC

FYA Test
  1. Remove 2010ECL monitor from tester unit.
  2. Reset dip switch to the following:
  3. Top dip switch: 1,4,5,6,7,9,10,11,12 “on” (all others “off”).
  4. Middle dip switch: 2,4,6,8 “on”.
  5. Bottom dip switch: 9,10,11,12 is “on”,13,14,15,16 all “off”.
  6. Remove “Regular Test Card” and insert “FYA Test Card” (see below Fig.1 FYA).
  7. Reinsert 2010ECL Monitor to the ATSI tester unit.
  8. Go to ATSI software, “Test Set” “Test Type” click “Diagnostic”.
  9. Go to Optional tab move down to “FYA Mode A” and check.
  10. Select “OK” to continue.
  11. Follow instructions on screen. Tester will “beep” when complete.


Figure 1 FYA PGC
How To Set Up The 2010ECL Monitor For An ATSI Test

Download and install PCMT-8800 Test Manager software as required.
