What is the procedure for 2018KCL or 2018KCLip signal monitor ATSI test?

This article discusses the procedure for performing an EDI 2018KCL or 2018KCLip signal monitor ATSI test.

Procedure

  1. Download and install PCMT-8800 Test Manager software.
  2. Open PCMT-8800 Test Manager.
  3. Go to “Monitor Info” and enter signal monitor details.
  4. Go to "Test Setup" and set:
    1. Test Standard Caltrans = Model 2010
    2. Monitor Type = 18 Channel
    3. Test Type = Certification
    4. Test Laps = One

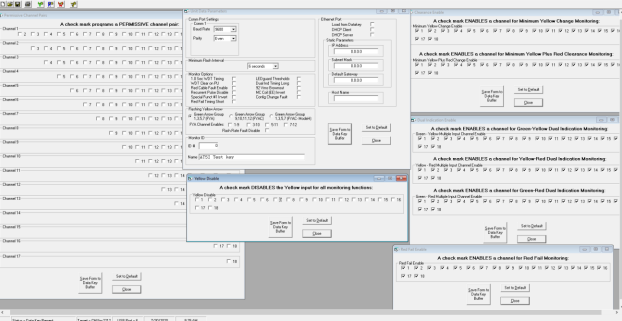

  5. Open MonitorKey software and set the following:
  6. Insert the test Monitor Key into the unit.
  7. See image below if you do not have a test key setup.
    1. Make sure you reset monitor for five seconds after setting switches.
    2. Tester will “beep” when complete.
