What is the procedure for Reno 2018 signal monitor ATSI test?

Procedure

1. Download and install PCMT-8800 Test Manager software.
2. Open PCMT-8800 Test Manager.

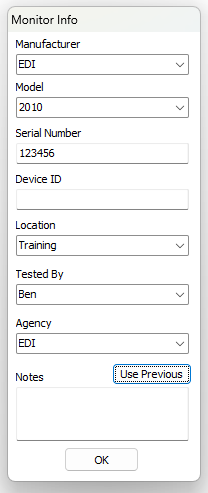

3. Go to “Monitor Info”.
4. Enter Reno 2018 Monitor data into Monitor Info (serial number, etc.)

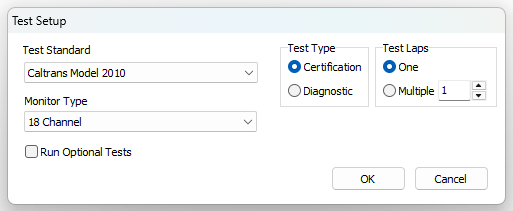

5. Go to "Test Setup” and set:
   1. Test Standard Caltrans = Model 2010
   2. Monitor Type = 18 Channel
   3. Test Type = Certification
   4. Test Laps = One
6. Open MonitorKey software and set the following:
   1. Option dip switch: 7 (2010) “on” (all others “off)
   2. DUAL ENABLE dip switch: all “on” (DUAL ENABLE on for all channels)
   3. RED FAIL dip switch: all “on” (SSM on for all channels)
   4. WD Enable: “on”
7. Insert “Regular Test Card” with all diodes soldered in.
8. Start test.
   1. Make sure you reset monitor for five seconds after setting switches).
   2. Tester will “beep” when complete.
